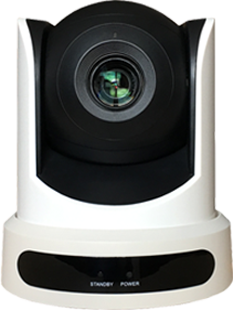

Evota – C10U

Full-featured USB interface

Full function USB interface, compatibility USB2.0, support compressed video output, support UVC protocol.

1080P full HD

High-quality HD CMOS sensor with 2.07 effective megapixels for high-quality images up to 1920×1080.

10x Optical zoom + 16x Digital Zoom

Use 58.5° wide-angle high quality lens, support 10x optical zoom, and 16x digital zoom.

Low illumination

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.

Remote control

The camera can be controlled using RS232.

H.264 Slice/ H.264 SVC encoding support

The output H.264 stream supports Slice and SVC encoding modes for high-end USB conferencing video applications.

Double stream

At the same time support two streams of stream output (YUY2, MJPEG, H.264 two), to reduce the host codec pressure.

Two power supply methods

Both USB 5V power supply and 12V power supply are supported.

Model Evota – C10U
Type PTZ Camera
Resolution 1080P @ 30fps, 720P
Video Format H.264 AVC, H.264 SVC, MJPEG
Optical Zoom 10X (f 5.13mm ~ 46.3mm, F1.8 ~ F2.8)
Digital Zoom 16X
Minimal Illumination 0.05 Lux @ (F1.8, AGC ON)
White Balance Automatic, one-click, manual
Backlight Compensation Support
Video S/N ≥55dB
Digital Noise Reduction 2D&3D Digital Noise Reduction
Sensor 1/2.7”, CMOS, Effective Pixel: 2.07M
PAN Range ±170°
Tilt Range -30° ~ +90°
Horizontal Angle of view 58.5° ~ 6.5°
Vertical Angle of view 35.1° ~ 3.6°
Input/Output Interface USB 2.0, RS232
Operating System Support Windows, Mac OS X, Linux, Android
No. of Preset 255 Preset
Input Voltage DC 12V
Power Consuption 12W (Max)
Operating Temperature -10 ° C ~ 40 ° C
Dimension (W X H X D) 141.3mm x 153mm x 163.6mm
Net Weight 1.15 Kg
