Our products and software solutions are designed to enhance your ability to engage a variety of learning styles.
Read More

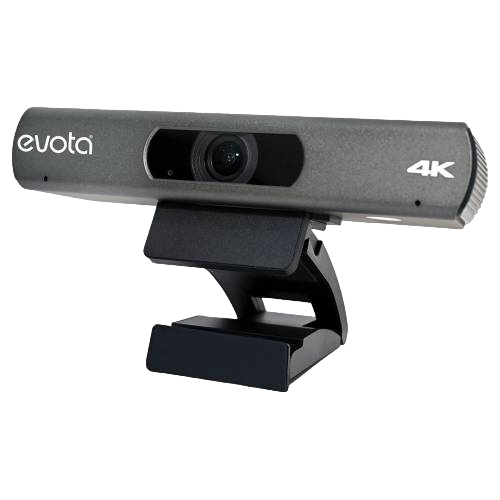

Ultra 4K HD
Support 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and down compatible with 1080p,720p.
USB 3.0 + HDMI
Full functional USB, 3.0 connection, power supply, video and audio all in one and support 2 streaming USB video signal and one audio source.
AF Lens
Complete customized auto focus non-distortion lens, view angle up to 46° / 84° , small lens with big view, supporting EPTZ.
Built in Microphone
Built in microphone array, omnidirectional pickup, pickup distance up to 12 meters, noise suppressing algorithm with excellent sound.
WDR
Support WDR, can handle different lighting environment.
Low Light
Ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise in the case of image noise, while the application of 2D and 3D noise reduction algorithm, significantly reducing the image noise, even under low light conditions, still keep the picture Clean and clear.
Easy Installation
Equipped with damping rotary shaft bracket, to meet the market almost 100% of the display, easy to install, stable and reliable.
|
Model |
Evota – E8U |
|
Type |
EPTZ |
|
Resolution |
4K@30fps/25fps, 1080P@60/50/30/25fps, 1080I@60/50fps, 720P@60/50fps |
|
Frame Support |
30fps |
|
Video Format |
H.264 AVC, H.264 SVC, H.265, MJPEG |
|
Digital Zoom |
8X |
|
Minimal Illumination |
0.05 Lux @ (F1.8, AGC ON) |
|
White Balance |
Automatic, one-click, manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital Noise Reduction |
|
Sensor |
1/2.5”, CMOS, Effective Pixel: 8.51M |
|
#N/A |
Focus: f=3.5mm, FOV: 84°, Focus: f=7.35mm, FOV: 46°(Dual Lens) |
|
Microphone |
Built in Array, Upto 12mtr voice pick-up, Noise suppression Algorithm |
|
Input/output Interface |
USB 3.0 |
|
Operating System Support |
Windows, Mac OS X, Linux, Android |
|
Input Voltage |
5V (USB power supply) |
|
Power Consumption |
3.5W |
|
Operating Temperature |
-10 ° C ~ 40 ° C |
|
Dimension (W X H X D) |
194mm x 34mm x 42mm |
|
Net Weight |
0.5Kg |
Experience transformative education with Evota Interactive Flat Panels. Engage students, foster collaboration, and unlock endless learning possibilities. Revolutionize your classroom with immersive technology that brings education to life.
Contact a Yotech Infocom Pvt. Ltd. representative at +91-991-001-1222 or click below to send us a note.
Digital signages enhance communication, engage customers, and provide dynamic content delivery, promoting brand visibility and information dissemination in a visually appealing manner.
Interactive Flat Panels facilitate collaborative learning, interactive lessons, and dynamic presentations. With touch capabilities and multimedia support, they enhance student engagement and learning outcomes.
LED Video Walls deliver vibrant, seamless visuals for impactful presentations, events, and advertising. With high brightness and resolution, they ensure eye-catching displays in diverse environments.
Wireless Presentation Systems enable seamless content sharing, fostering collaboration in meetings. Users can wirelessly connect devices, share content, and enhance productivity with efficient, cable-free presentations.
Audio video Conferencing Systems offer high-quality communication, ensuring clear audio and video for virtual meetings. They foster collaboration, connecting remote teams and facilitating effective communication.
Digital Podiums provide a technologically advanced platform for speakers. With integrated audio-visual features, touch controls, and connectivity options, they enhance presentations, lectures, and public speaking engagements.
Provide an immersive experience with 4K resolution, up to 40 points of touch, a built-in top-oriented sound bar and microphone array, and a convenient camera USB port location.
| Size: | 86″ |
| Screen Type: | LED |
| Aspect Ratio: | 16:9 |
| Display Area: | 74.61″ x 41.97″ |
| Resolution: | 3840(H) x 2160(V) Ultra HD |
| Pixel Pitch: | 0.4935 mm x 0.4935 mm |
| Back Light Unit: | Direct type LED |
| Response Time: | 6.5 ms |
| Refreshing Frequency: | 60Hz |
| Display Color: | 1.07B (10 bit) |
| Brightness: | 350 cd/m2 |
| Static Contrast Ratio: | 1200:1 |
| Dynamic Contrast Ratio: | 4000:1 |
| Viewing Angle: | 178° |
| Life Time: | ≥50,000 hours |
