| MODEL | evota-EP86 EDLA | |
| PANEL | Screen Size | 86 inch |
| Touch Technology | Infrared Optical | |
| Touch Point | Upto 40 Points Multitouch | |
| Backlit | D-LED | |
| Resolution | 4K, 3840 X 2160 (Ultra HD) | |
| Aspect Ratio | 16:9 | |
| Brightness (Typical) | 450 nits | |
| Contrast Ratio | 5000:1 | |
| Glass Protection | AG Toughened Glass 7 Mohs | |
| Frequency | 60Hz | |
| Response Time | <5ms | |
| Color Depth | 10 Bit | |
| Operating Hours | 24h X 7 | |
| Viewing Angle | 178/178 | |
| SYSTEM | Operating System | Android 14 EDLA Certified |
| Processor | Quad Core ARM Cortex A73X4 | |
| GPU | Mali G52 | |
| System Memory | 8GB DDR4 | |
| Internal Storage | 128GB | |
| CONNECTIVITY | HDMI In | 3 |
| HDMI Out | 1 | |
| VGA In | 1 | |
| DP In | 1 | |
| C-Type | 2 (1xFront Full Function 65W+ 1X Rear USB 2.0 + DP +5V3A) | |
| Audio In | 1 | |
| RJ45 (LAN) | 2(1X In + 1 X Out) | |
| RS232 | 1 | |
| Touch Out | 3 USB Type-B | |
| USB 3.0 | 3 | |
| USB 2.0 | 2 | |
| SPDIF | 1 | |
| TF Card Slot | 1 | |
| Audio Out | 1 | |
| Wireless Connectivity | Wi-Fi 6 (2.4GHz & 5GHz support) | |
| Bluetooth | BT Version 5.0 | |
| OPS Slot | Available | |
| AUDIO OUTPUT | Speaker Type | Built-in Speaker |
| Speaker Output | 2X 20W | |
| PHYSICAL CHARACTERISTICS | Dimension (mm) | 1720 X 1025 X 89.5 |
| Weight (Kg) | 70 | |
| ENVIRONMENT | Power Consumption in Operating Mode | 250W |
| Power Consumption in Sleep Mode | 0.5W | |
| Temperature | 0-40°C | |
| Humidity | 10-90% RH | |
| POWER | 100-240 V AC, 50 Hz | |
| STANDARD ACCESSORIES | AC Power Cord, 2 X Stylus, Remote Control, Wall Mount Bracket | |

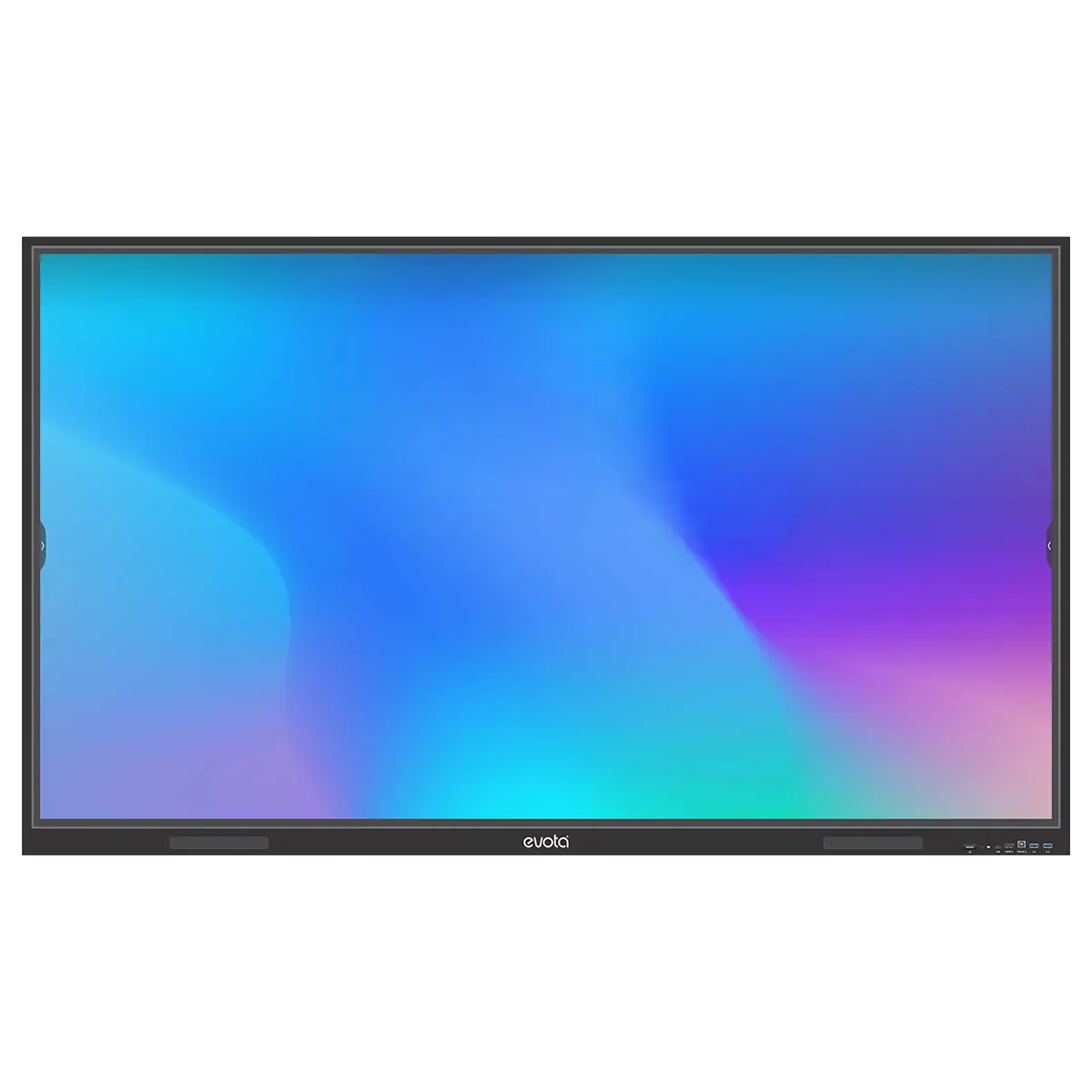

Experience transformative education with Evota Interactive Flat Panels. Engage students, foster collaboration, and unlock endless learning possibilities. Revolutionize your classroom with immersive technology that brings education to life.
Contact a Yotech Infocom Pvt. Ltd. representative at +91-991-001-1222 or click below to send us a note.
Digital signages enhance communication, engage customers, and provide dynamic content delivery, promoting brand visibility and information dissemination in a visually appealing manner.
Interactive Flat Panels facilitate collaborative learning, interactive lessons, and dynamic presentations. With touch capabilities and multimedia support, they enhance student engagement and learning outcomes.
LED Video Walls deliver vibrant, seamless visuals for impactful presentations, events, and advertising. With high brightness and resolution, they ensure eye-catching displays in diverse environments.
Wireless Presentation Systems enable seamless content sharing, fostering collaboration in meetings. Users can wirelessly connect devices, share content, and enhance productivity with efficient, cable-free presentations.
Audio video Conferencing Systems offer high-quality communication, ensuring clear audio and video for virtual meetings. They foster collaboration, connecting remote teams and facilitating effective communication.
Digital Podiums provide a technologically advanced platform for speakers. With integrated audio-visual features, touch controls, and connectivity options, they enhance presentations, lectures, and public speaking engagements.
Provide an immersive experience with 4K resolution, up to 40 points of touch, a built-in top-oriented sound bar and microphone array, and a convenient camera USB port location.
| Size: | 86″ |
| Screen Type: | LED |
| Aspect Ratio: | 16:9 |
| Display Area: | 74.61″ x 41.97″ |
| Resolution: | 3840(H) x 2160(V) Ultra HD |
| Pixel Pitch: | 0.4935 mm x 0.4935 mm |
| Back Light Unit: | Direct type LED |
| Response Time: | 6.5 ms |
| Refreshing Frequency: | 60Hz |
| Display Color: | 1.07B (10 bit) |
| Brightness: | 350 cd/m2 |
| Static Contrast Ratio: | 1200:1 |
| Dynamic Contrast Ratio: | 4000:1 |
| Viewing Angle: | 178° |
| Life Time: | ≥50,000 hours |
